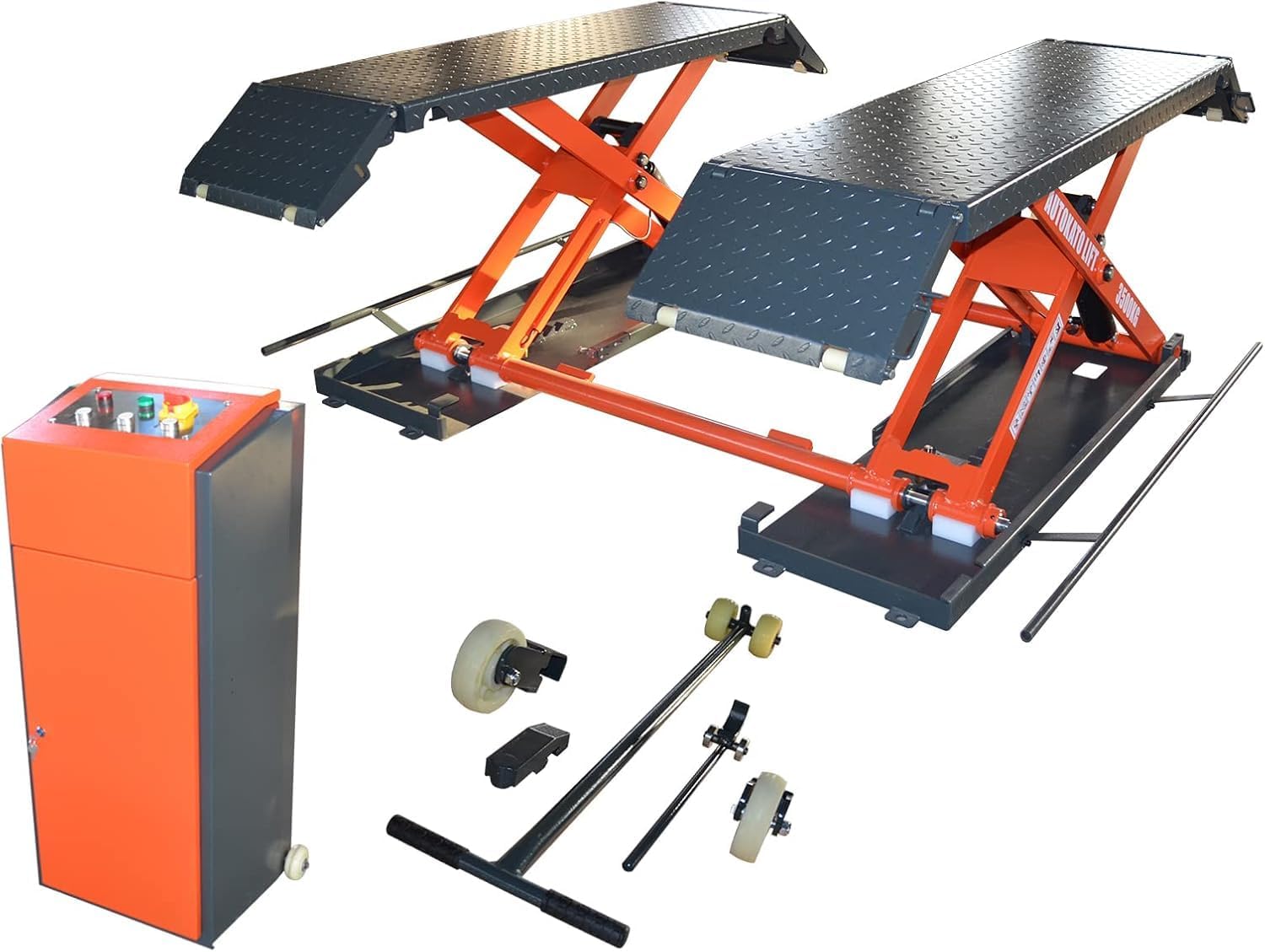

The KATOOL X85 Mid-Rise Scissor Lift is a powerful and versatile solution for shops and home garages looking for mobility, safety, and efficiency. With an 8,000 lb capacity, electric safety release system, and a 41.25-inch max lift height, it’s designed to handle a wide range of vehicles while remaining compact and easy to move. Whether mounted permanently or used as a mobile unit, the X85 delivers professional-grade lifting power in a space-saving design.

Key Features

• 8,000 lb Lifting Capacity: Handles cars, SUVs, and light trucks.

• Mid-Rise Lift Design: Raises vehicles up to 41.25", perfect for tire, brake, and underbody service.

• Electric Safety Release: Simplifies lowering while ensuring safe, controlled operation.

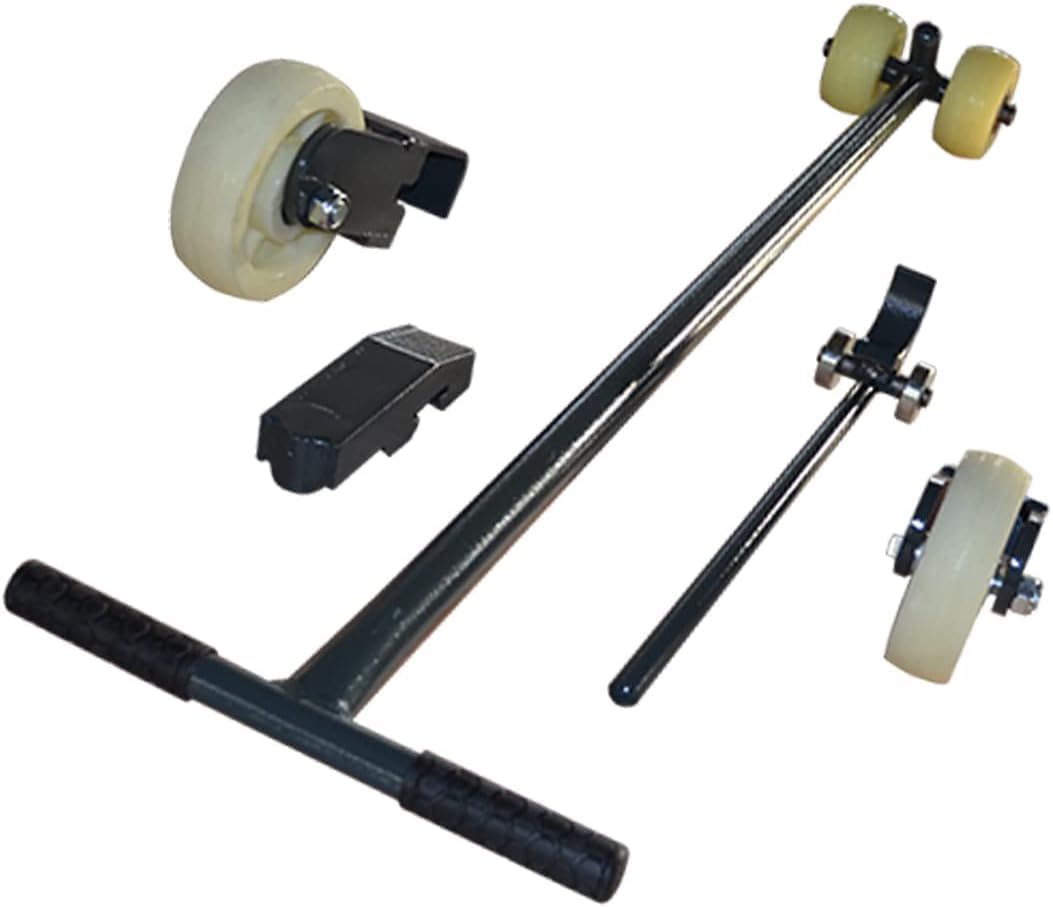

• Mobile or Fixed Mount: Use as a permanent shop lift or move around with the included mobile kit.

• Top-Level Hydraulic System: Features an aluminum motor with fan cooling to prevent overheating during extended use.

• 24V Safe Control System: Ensures operator safety with low-voltage operation.

• Height Limit Switch: Protects vehicles and equipment by preventing over-travel.

• Self-Lubricating Bushings & Bearings: Reduce maintenance while ensuring smooth operation.

• Drive-Up Ramp Lock: Doubles as a platform extension for long-wheelbase vehicles.

• Compact Profile: Low 4.25" minimum height for easy vehicle access.

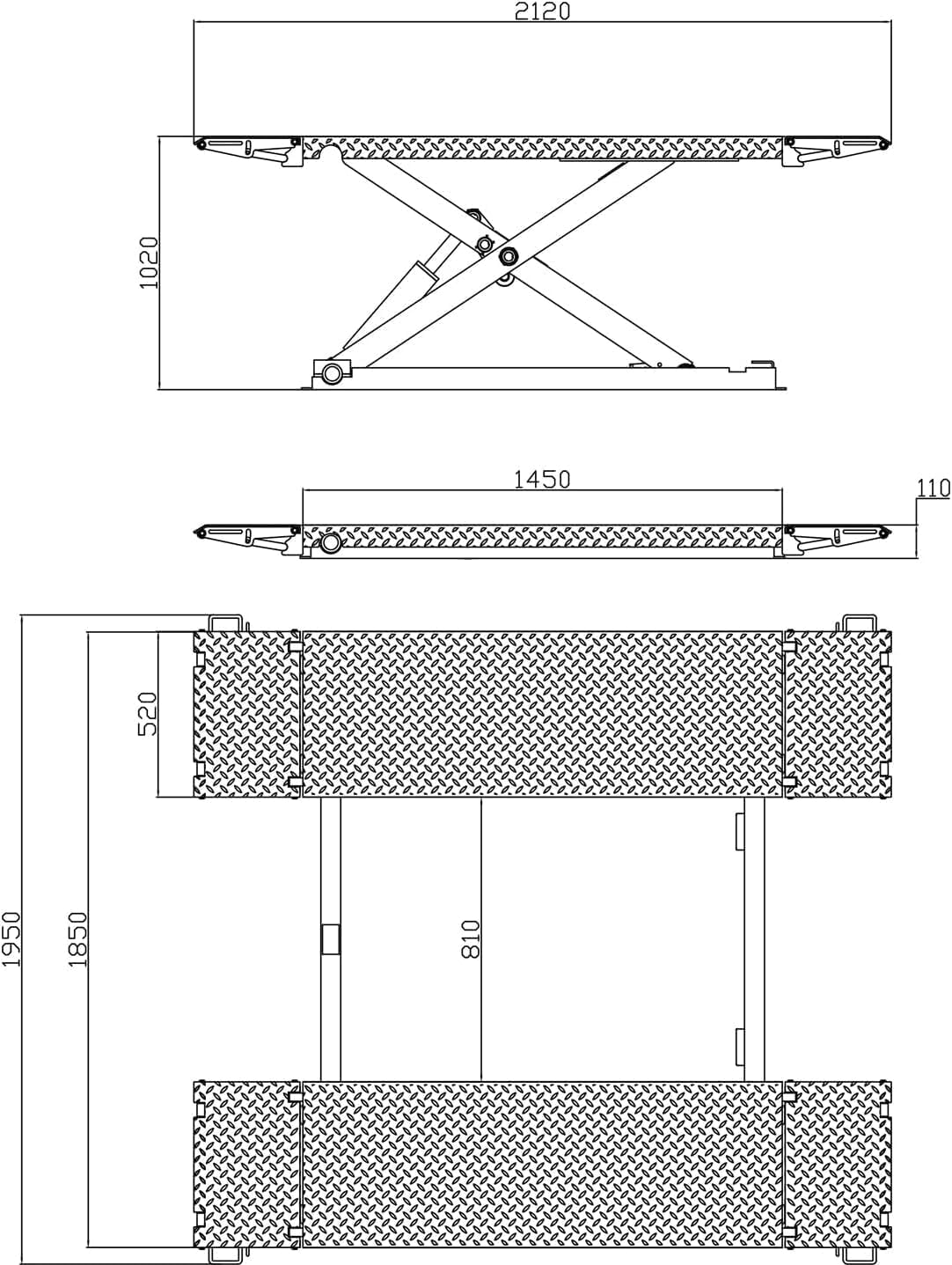

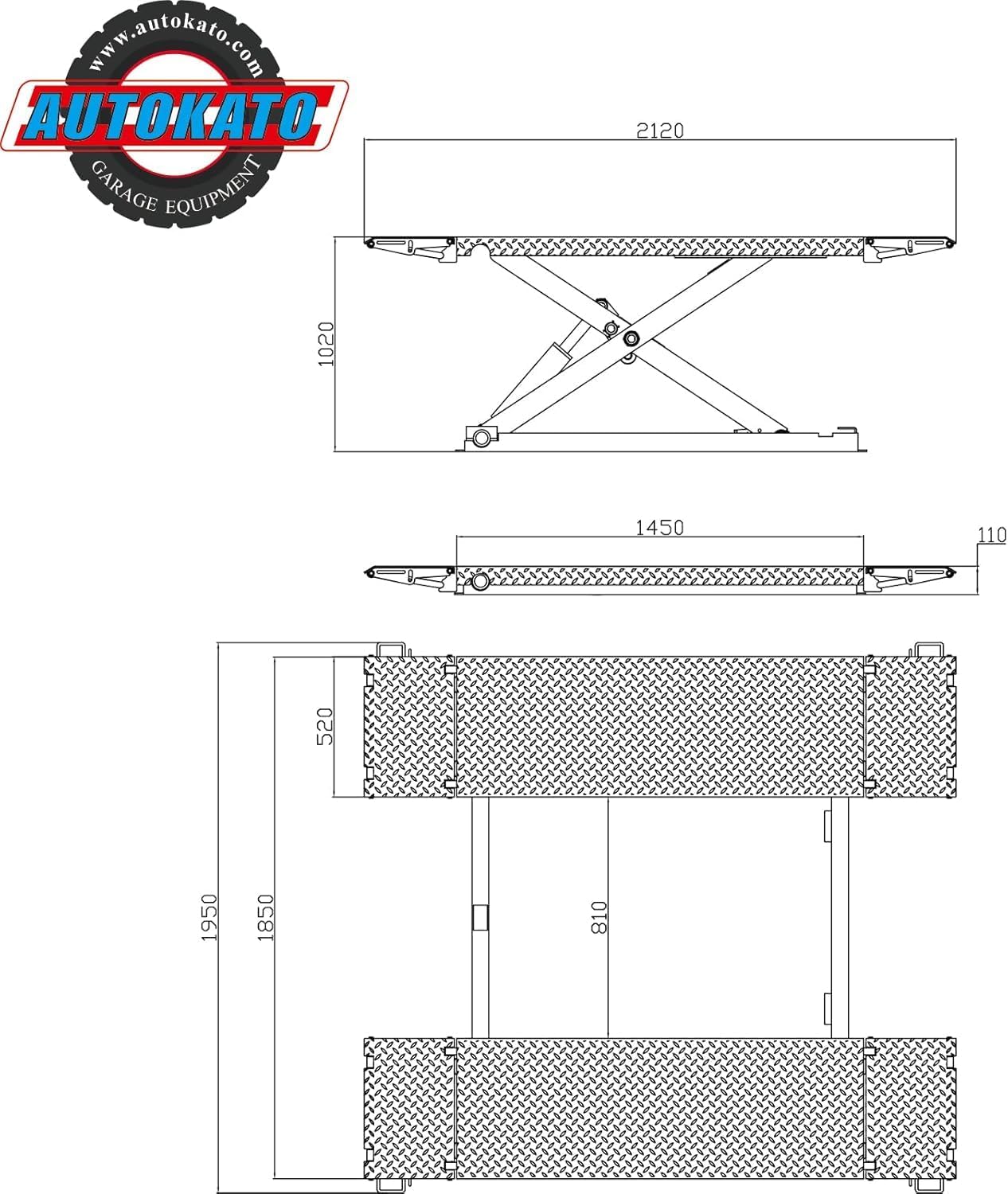

Technical Specifications

• Brand: KATOOL

• Model: X85 110V

• Capacity: 8,000 lbs

• Max Lift Height: 41.25"

• Min Height: 4.25"

• Platform Length: 56.25"

• Overall Length: 80"

• Overall Width: 73.25"

• Power Supply: 110V / 60Hz / 1Ph

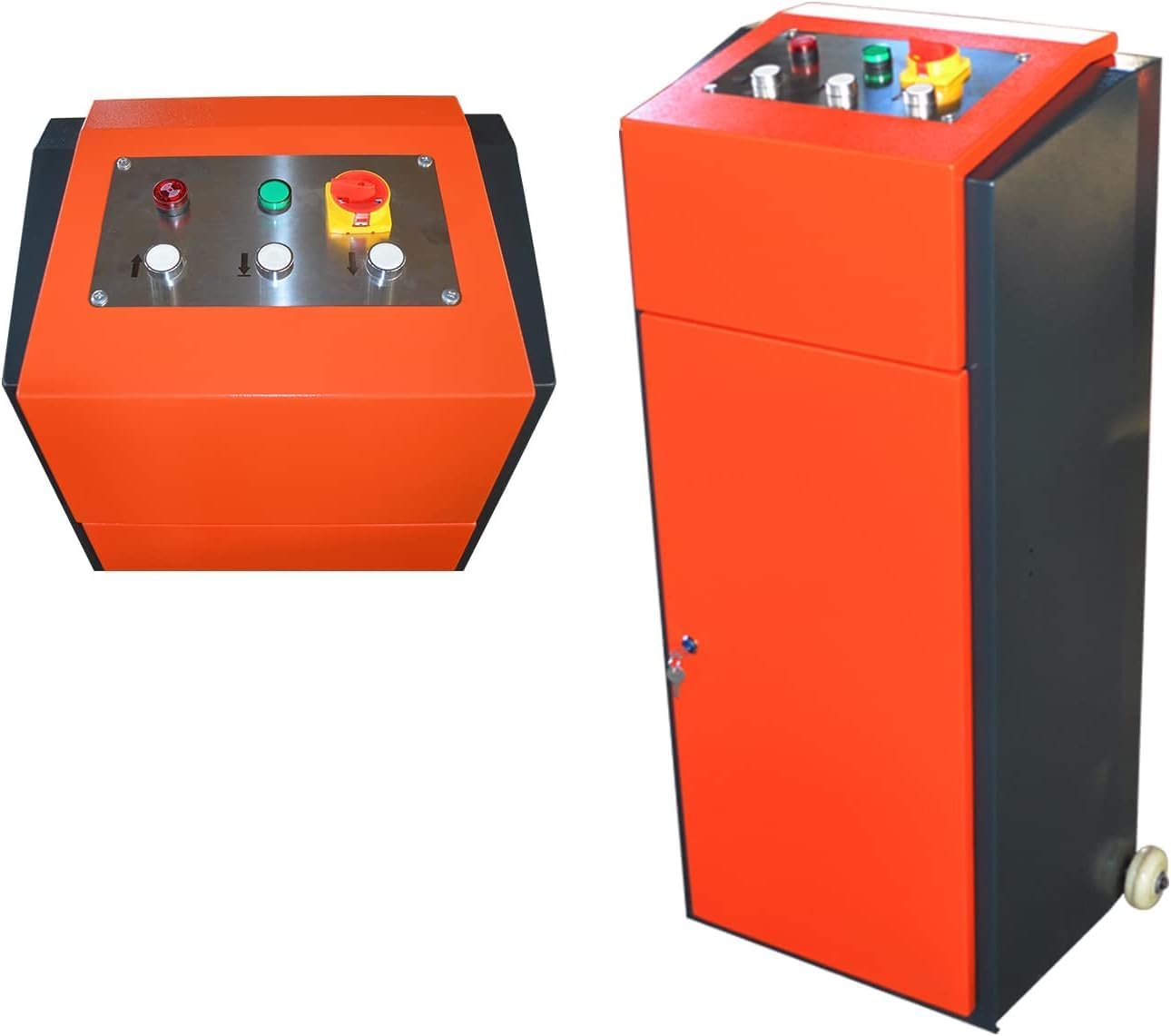

• Control System: 24V safe control

• Construction: Heavy-duty steel with self-lubricated bushings & bearings

• Weight: 1,658 lbs

• Included: Mobile kit, ramps, power unit

Why Choose KATOOL X85?

The X85 mid-rise scissor lift is the perfect balance between portability and power. Its mobile design, electric safety release, and 8,000 lb capacity make it ideal for tire service, detailing, brake jobs, and routine maintenance. With professional-grade safety features and a compact footprint, it’s equally at home in busy repair shops and home garages.

Perfect For

• Tire & brake shops

• Auto detailing services

• Home garages with limited ceiling height

• Professional shops needing a mobile lift option
