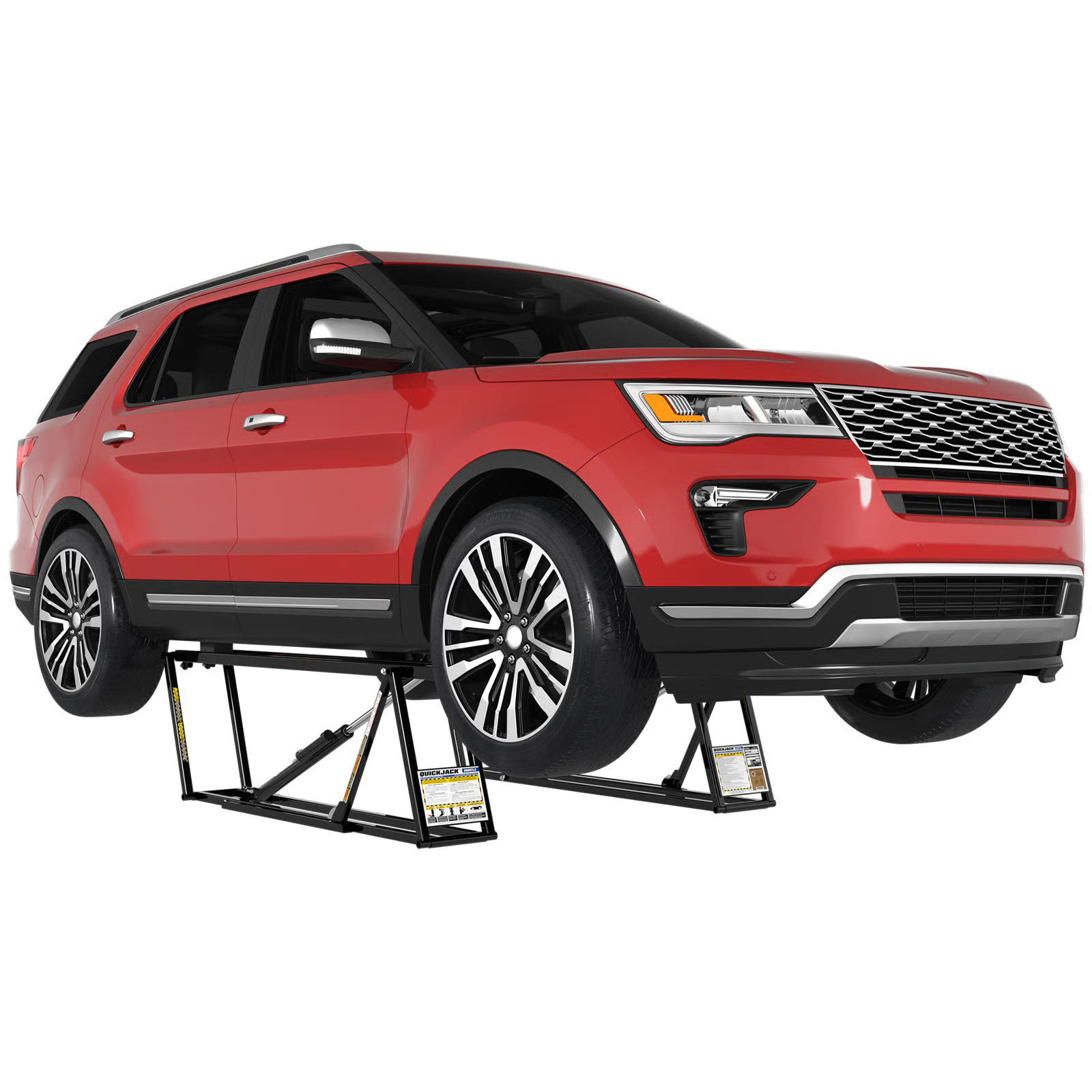

The QuickJack 6000TLX Portable Car Lift is designed for vehicles with longer wheelbases, offering an extended 76-inch frame and a 6,000 lb lifting capacity. With a 24-inch maximum lift height, reinforced structural components, and an upgraded hydraulic system, the 6000TLX is the perfect solution for SUVs, light-duty trucks, and cars with wider lift point spreads. Built for home garages, professional shops, and serious DIYers, it combines safety, strength, and portability in one compact package.

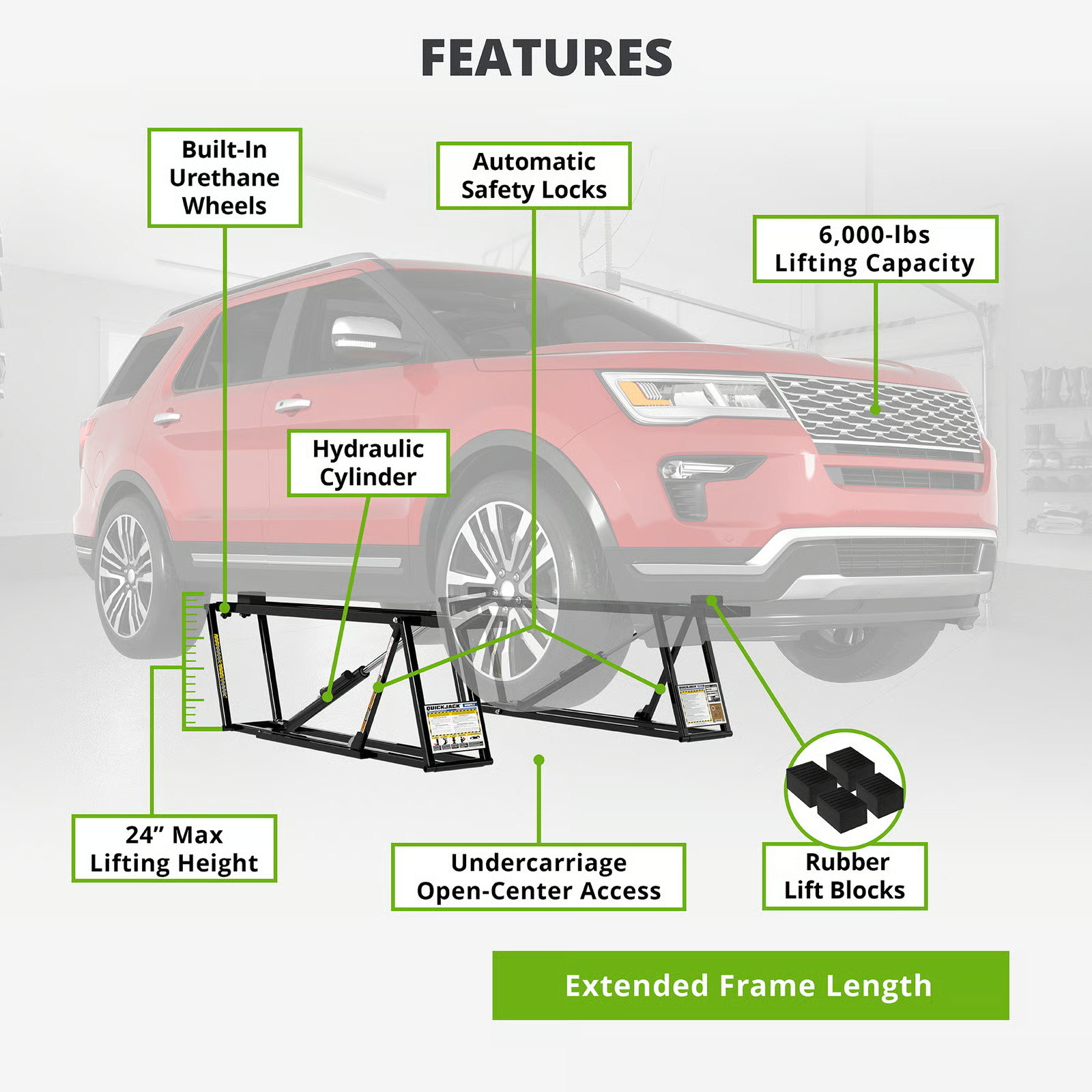

Key Features

• Extended Frame Reach: 76" frame with a lift point spread from 43" to 66" for longer vehicles.

• 6,000 lb Capacity: Strong enough for cars, small SUVs, and light-duty trucks.

• 24" Max Lift Height: Provides ample clearance for inspections, detailing, and repairs.

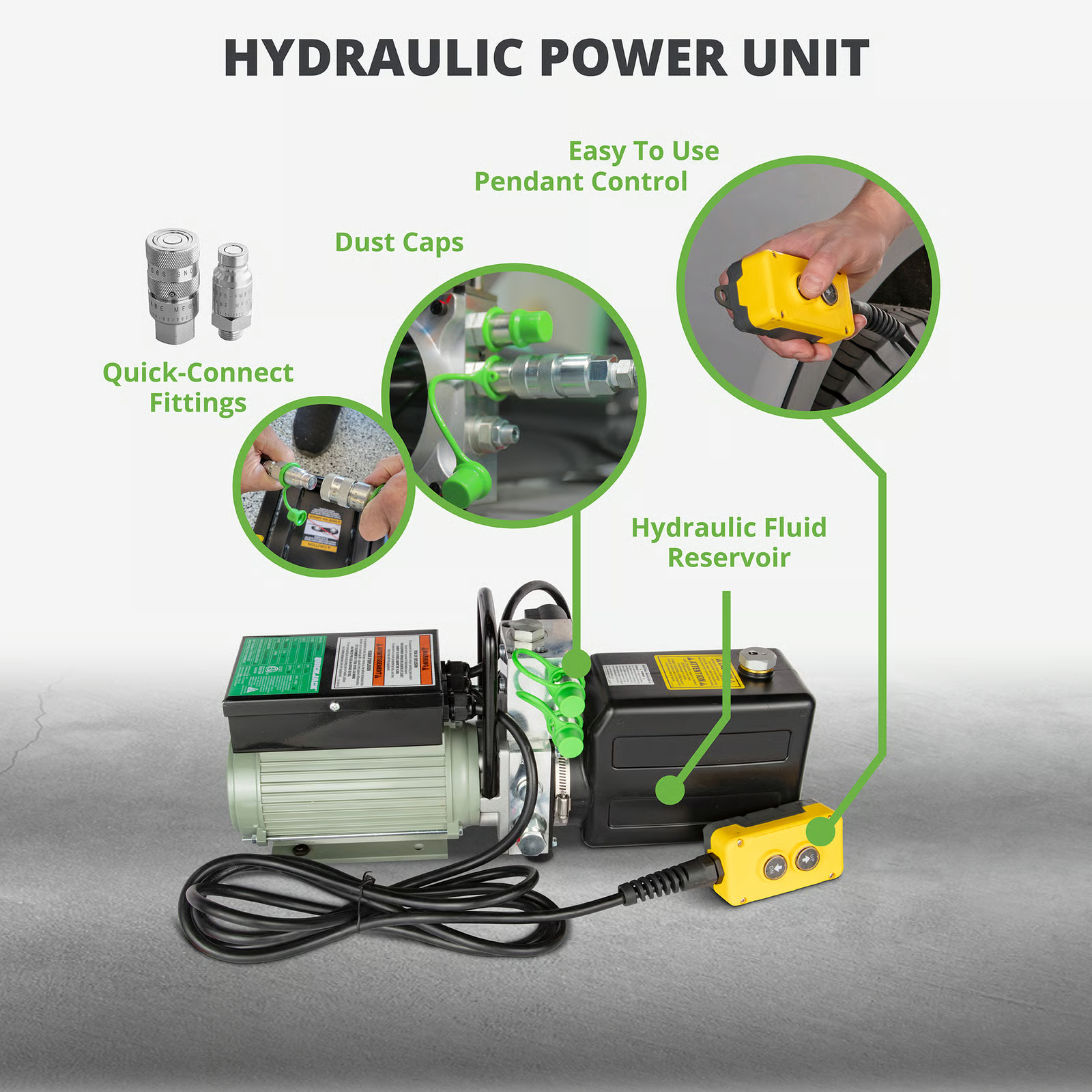

• Upgraded Hydraulic Power Unit: Redesigned with a flow divider and solenoids for perfectly synchronized lifting.

• Reinforced Frame: Enhanced weld geometry, thicker cross members, and upgraded pivot joints improve durability.

• Automatic Safety Locks: Dual-position locks engage at mid-rise and full-rise heights.

• Compact & Portable: Collapses to just 3" with urethane wheels for easy storage and mobility.

• Fast Operation: Reaches full height in ~30 seconds with pendant-style one-handed control.

• Preassembled Hydraulics: Factory setup for quick installation and reliable use.

• Accessory Compatible: Works with QuickJack adapters, pinch-weld blocks, and extension kits.

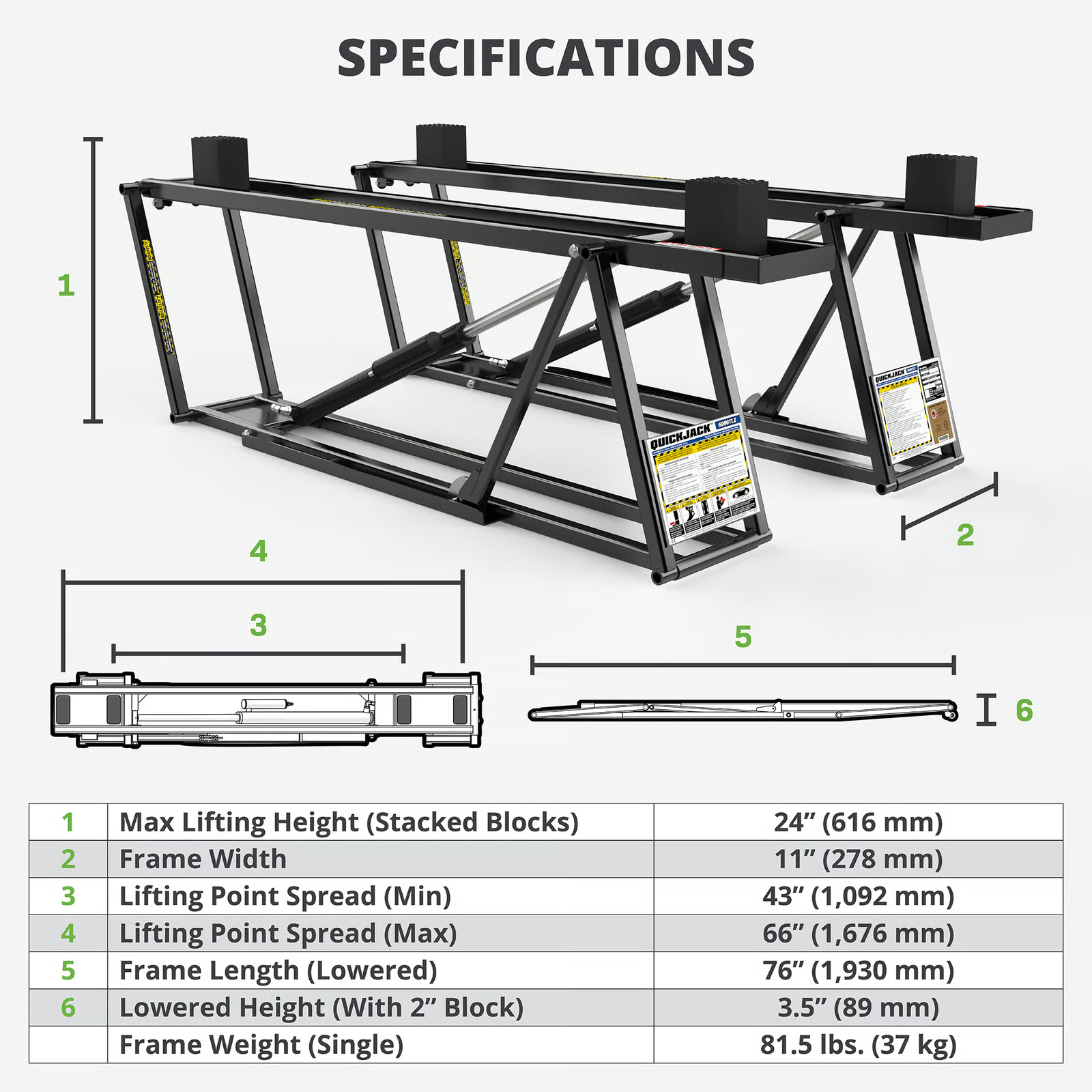

Technical Specifications

• Brand: QuickJack

• Model: 6000TLX (110V)

• Material: Steel

• Capacity: 6,000 lbs

• Frame Length: 76" (extended)

• Min Lift Point Spread: 43"

• Max Lift Point Spread: 66"

• Max Lift Height: 24" (with stacked blocks)

• Collapsed Height: 3"

• Individual Frame Weight: 90 lbs

• Rise Time: ~30 seconds

• Locking Positions: 2

• Lock Release: Single-point safety release

• Motor: 110V, 1 HP, 50/60Hz, 1-Ph, 3450 RPM (1100W)

• Noise Level: 70 dB

What’s Included

• (1) QuickJack 6000TLX Portable Lift (110V Power Unit)

• Left & Right Frame Assemblies

• 1 Short Hydraulic Hose

• 2 Long Hydraulic Hoses

• 1 Frame-Positioning Handle

• 4 Medium Rubber Lift Blocks

• 4 Tall Rubber Lift Blocks

Why Choose QuickJack 6000TLX?

The 6000TLX is engineered specifically for longer vehicles, filling the gap between standard TL models and heavy-duty lifts. With increased reach, upgraded safety, and structural reinforcements, it’s the most versatile portable lift for modern SUVs, crossovers, and extended sedans. Whether you’re a professional mechanic or a home enthusiast, it delivers the perfect balance of power, reach, and portability.

Perfect For

• Longer-wheelbase cars and SUVs

• Light-duty trucks and crossovers

• Home garages with limited storage space

• Shops needing a portable solution for larger vehicles
